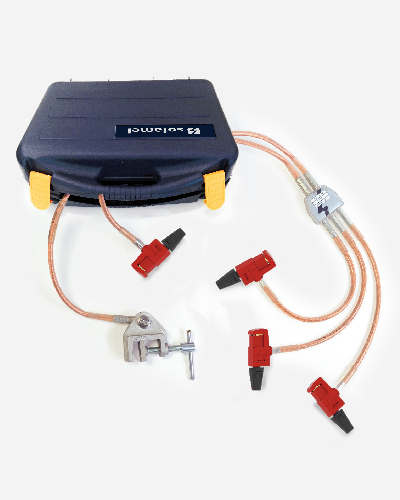

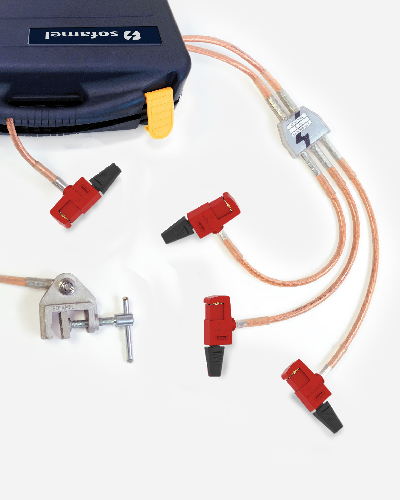

30902 ECBT-SHUNT4

Earthing and short-circuit kit for low-voltage distribution boards.
The main reason for their installation is to protect the worker from accidental power-on or return of voltage during repair work.

According to IEC 61230 standard.

Composed of:

• 4 insulated SHUNT earth clamps and the neutral.
• 3 copper PVC-insulated cables 25 mm² section and 1.2 m long for short circuit of phases.
• 1 copper cables 25 mm² section and 1.5 m long for the neutral’s earthing.
• 1 PVC-insulated cable 25 mm² section and 2 m long for earthing.
• 1 branch-joint connector (5 cables).
• 1 TT-38A earthing lathe.
• 1 plastic case for storage and transport.
