30906 PATC-3MPUL

Earthing and short-circuit equipment for low/medium voltage electric panels.
The main aim for its installation is operator’s protection against an accidental commissioning or possible voltage return during repair operations.

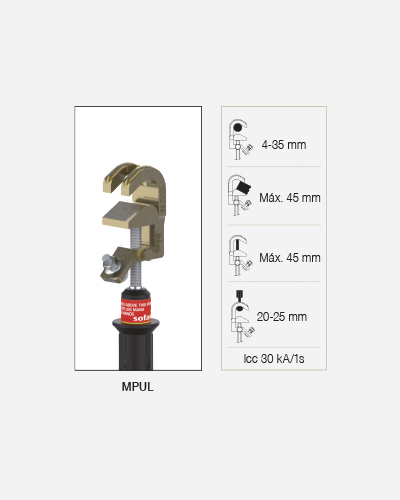

The MPU clamps can be fixed on bare cylindrical conductors, flat bars, bending bus-bars or fixing points.

According to IEC 61230 standard.

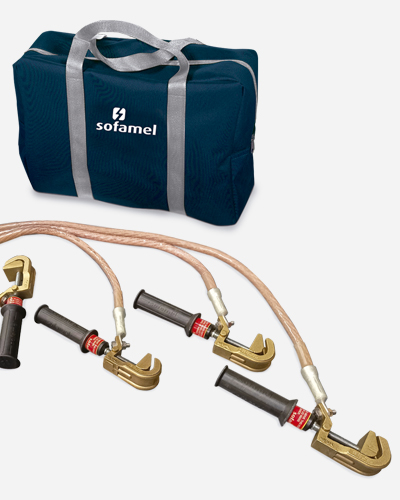

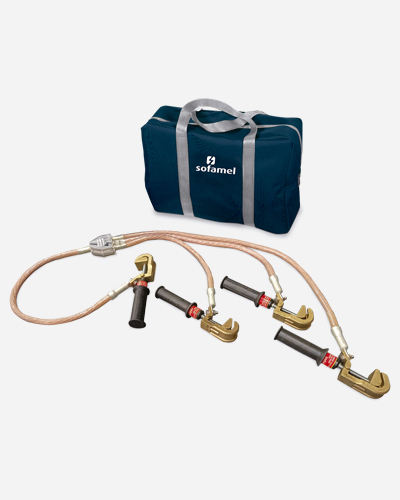

Composed of:

• 4 MPUL aluminium alloy clamps with screw tighten and handle insulated grip.
• 3 copper cables with PVC insulation of 95 mm² section and 1 – 0.7 – 0.55 m long.
• 1 copper cable with PVC insulation of 95 mm² section and 0.75 m long.
• 1 branch-joint connector.
• 1 nylon bag to store and transport the equipment.
