30908 PAT-AL-3/MPL

Earthing and short-circuiting equipment for overhead lines and high-voltage substations.
The main aim for its installation is operator’s protection against an accidental commissioning or possible voltage return during repair operations.

According to IEC 61138 standard.

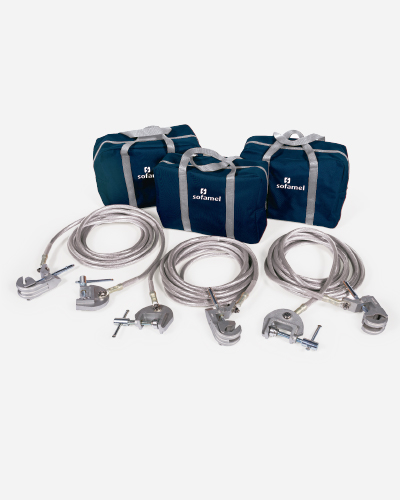

Composed of:

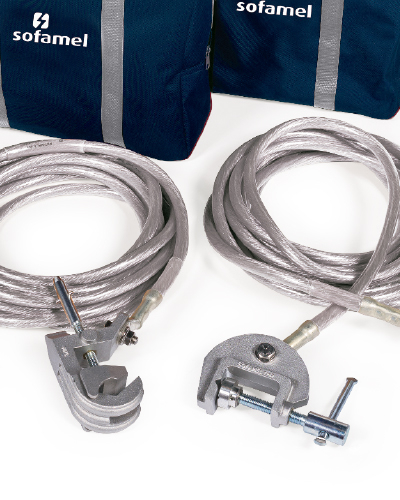

• 3 MPL aluminium alloy clamps with screw tighten for cylindrical conductors with diameter between 6 and 45 mm.
• 3 aluminium cables with PVC insulation. Section and length depending on model.
• 3 TT-50 milling earthing lathe.
• 3 nylon bags to store and transport the equipment.

* Depending on availability, the colour of the bag may vary.
