30909 ERLAIN

Earthing equipment for overhead lines, easy to use for only one operator that besides facilitates the verification of absence of tension with a voltage detector (not included).
Thanks to the operation sections of the metal pole, it has multiple length adjustments.

According to IEC 61230 standard.

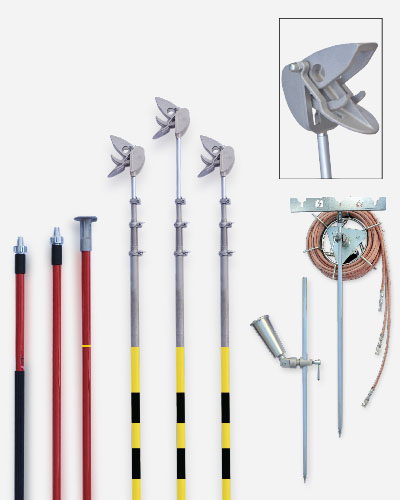

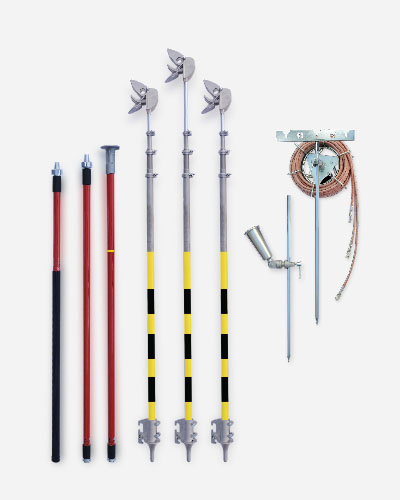

Composed of:

• 3 telescopic metal poles composed of 3 parts with self-locking fixed contact clamp for conductors with diameter between 3 and 22 mm.
• 1 insulating fiberglass pole + Eproxy resin and polyurethane foam filled with 3 sections of 1.72 + 1.65 + 1.63 m; certified by the IEC 60855 standard. Total length: 5 m (has the option of using it without the middle section with a remaining total length of 3.4 m).
• 1 poles holder.
• 1 coil with 3 copper cables of 35 mm² section and 10 m length.
• 2 galvanized steel earthing rod with hexagonal section of 1 m.
• 1 insulating pole support.
• 1 carrying bag.

Note: the maximum tightening torque for the reel is 15Nm.
