30909 PATC-BP

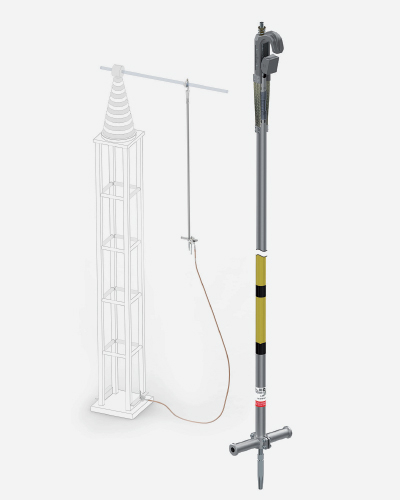

Equipment with intermediate BPGA potential drop clamp, with 3 m aluminium tube, allowing the earthing point to be transferred to facilitate manoeuvring.

According to IEC 61230 standard.

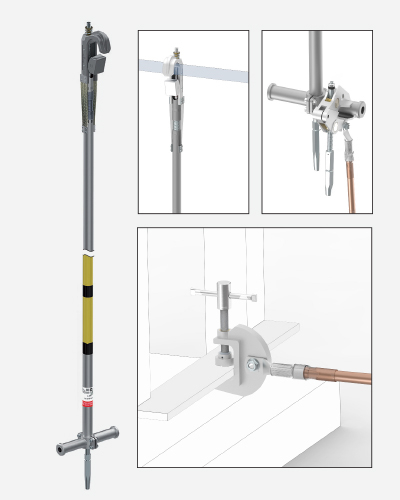

Composed of:

• 1 BPGA potential drop clamp.
• 1 PA40/BP aluminium alloy clamp, screw tightening. For cylindrical conductors with diameters of between 10 and 60 mm.
• 1 copper cable with PVC insulation of 120 mm² section and length of 6 m.
• 1 TT-50 milling earthing lathe.
• 1 nylon bag to store and transport the equipment.

* Depending on availability, the colour of the bag may vary.
