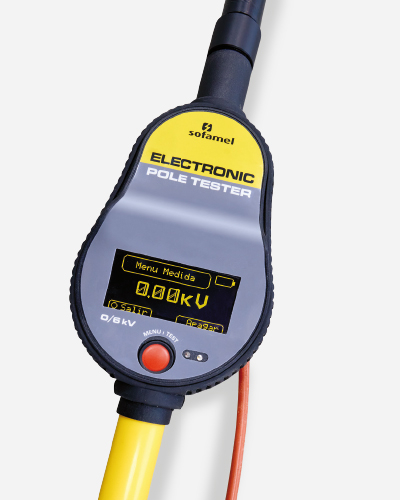

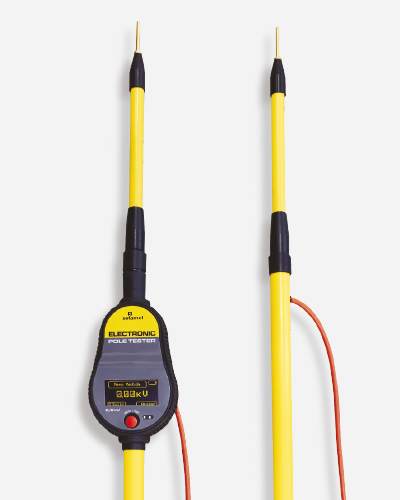

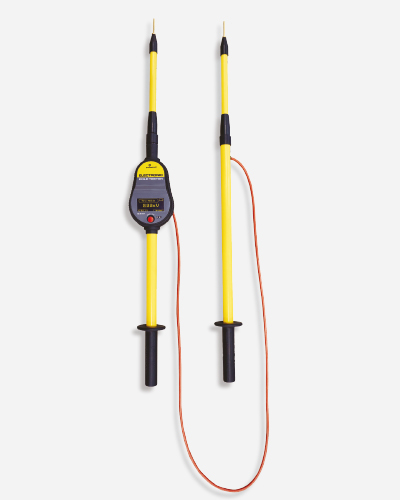

31007 PV0/6

Voltimetric pole – Low & Medium voltage – Optical & Acoustic

Bipolar voltage detector with digital display OLED to be used in MV networks.
Internal and external use in dry environment.
Voltage range: from 0 kV to 6 kV AC.
Auto turn-off to standby mode after two minutes WITHOUT VOLTAGE DETECTION. In this mode consumption is less than 1 μA.
Double indication of concordance-discordance by LED lights, reading on digital display.
Removable antenna.
Power supply: 9 V alkaline battery, type 6LR61.

Functionalities:

Phase comparator.
Voltage meter (True RMS).

31007 PV0/6

Rated voltage: from 0 to 6 kV AC
LED optical indication
Frequency: 50 Hz AC
Type: resistive
S class with extension of the contact electrode.
Climatic category N, climatic conditions for use and storage, temperature from -25°C to +55°C, and humidity from 20 to 96%.
Indoor and outdoor use in dry environment.
Supplied with metallic box.
