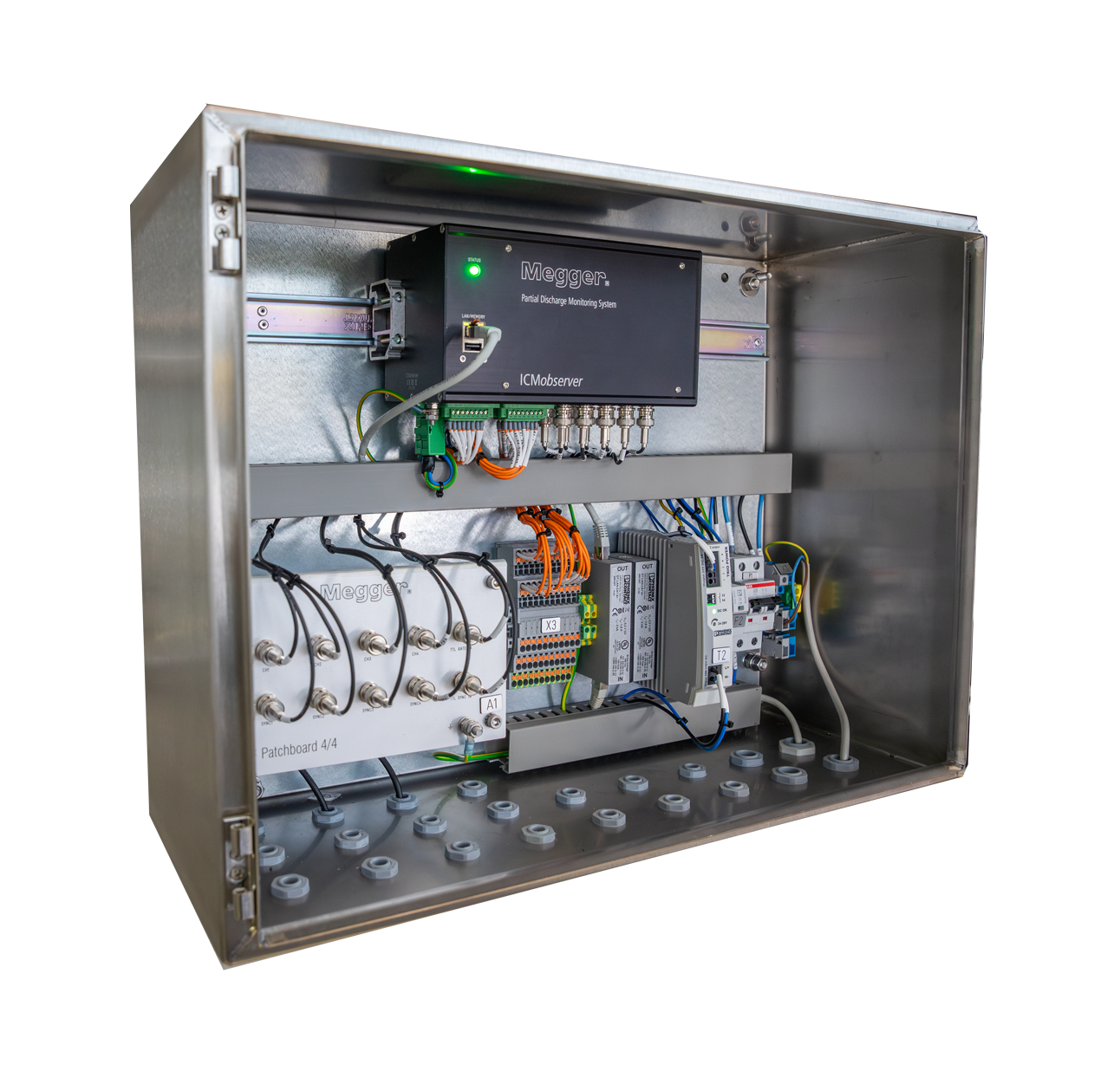

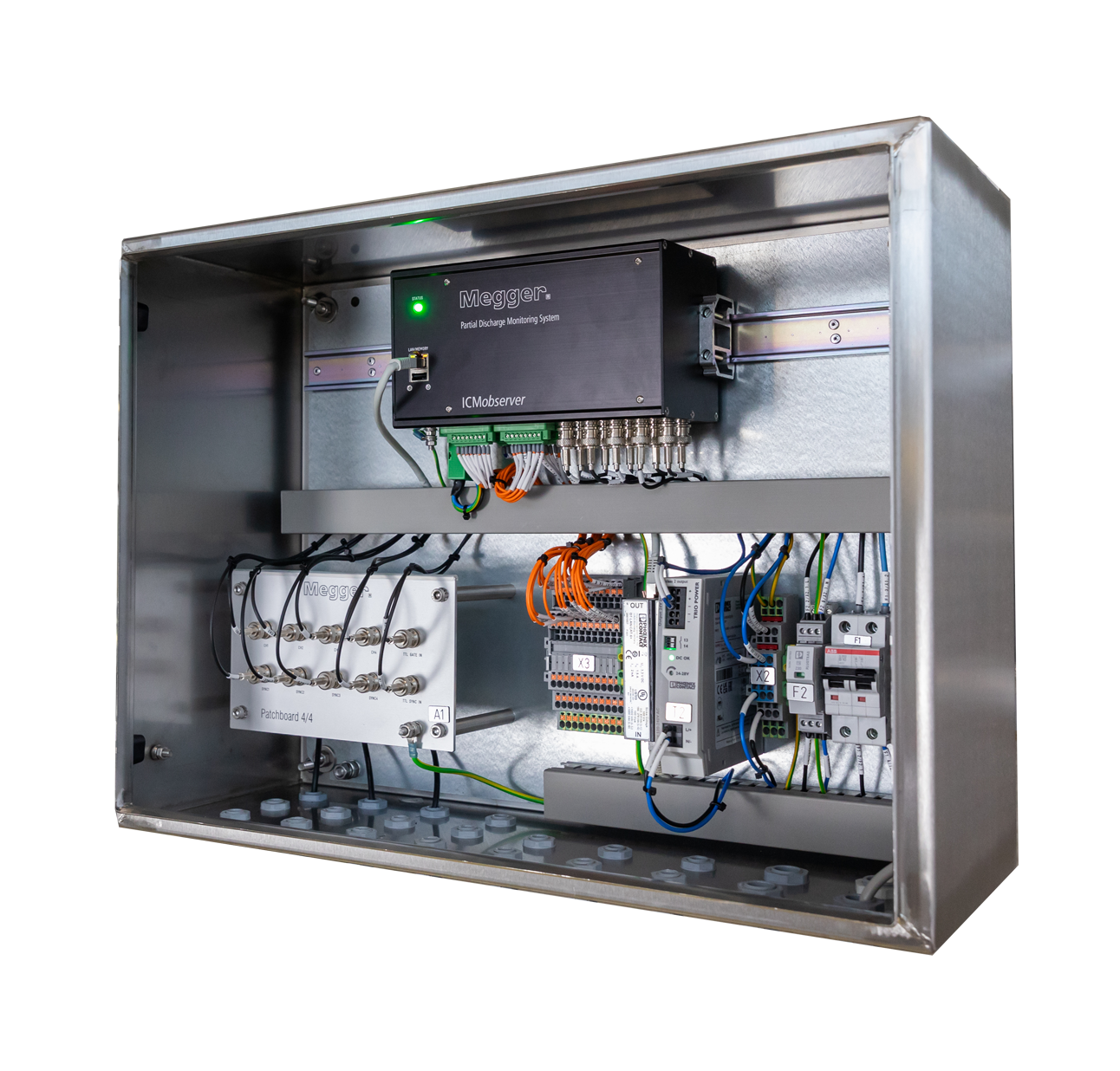

ICM Observer – PD Monitoring System

Description

The ICMobserver combines the unmatched quality of the analogue front end of our current PD detectors with the additional features and benefits of the developments in digital signal processing during the last 20 years.

The ICMobserver is a versatile state-of-the-art monitoring system, which combines four devices in one solution: A spectrum analyser, a time domain oscilloscope, voltage measurement, and a PD monitor.
With digital signal processing, the spectrum analyser offers a vast range of possible bandwidths. This greatly improves capabilities to deal with an elevated noise-floor that is often inevitable in on-site monitoring conditions.

The built-in time domain oscilloscope together with fully parallel phase-resolved partial discharge patterns (PRPD) on all channels significantly expands the analysis options, so that you will be able to give an in-depth analysis of the condition of the monitored asset.

The modular concept of the hardware and software ensures expandability of the system for future applications, e.g., dissolved gas analysis (DGA) monitoring and temperature and load surveillance providing one data aggregation point.
