Description

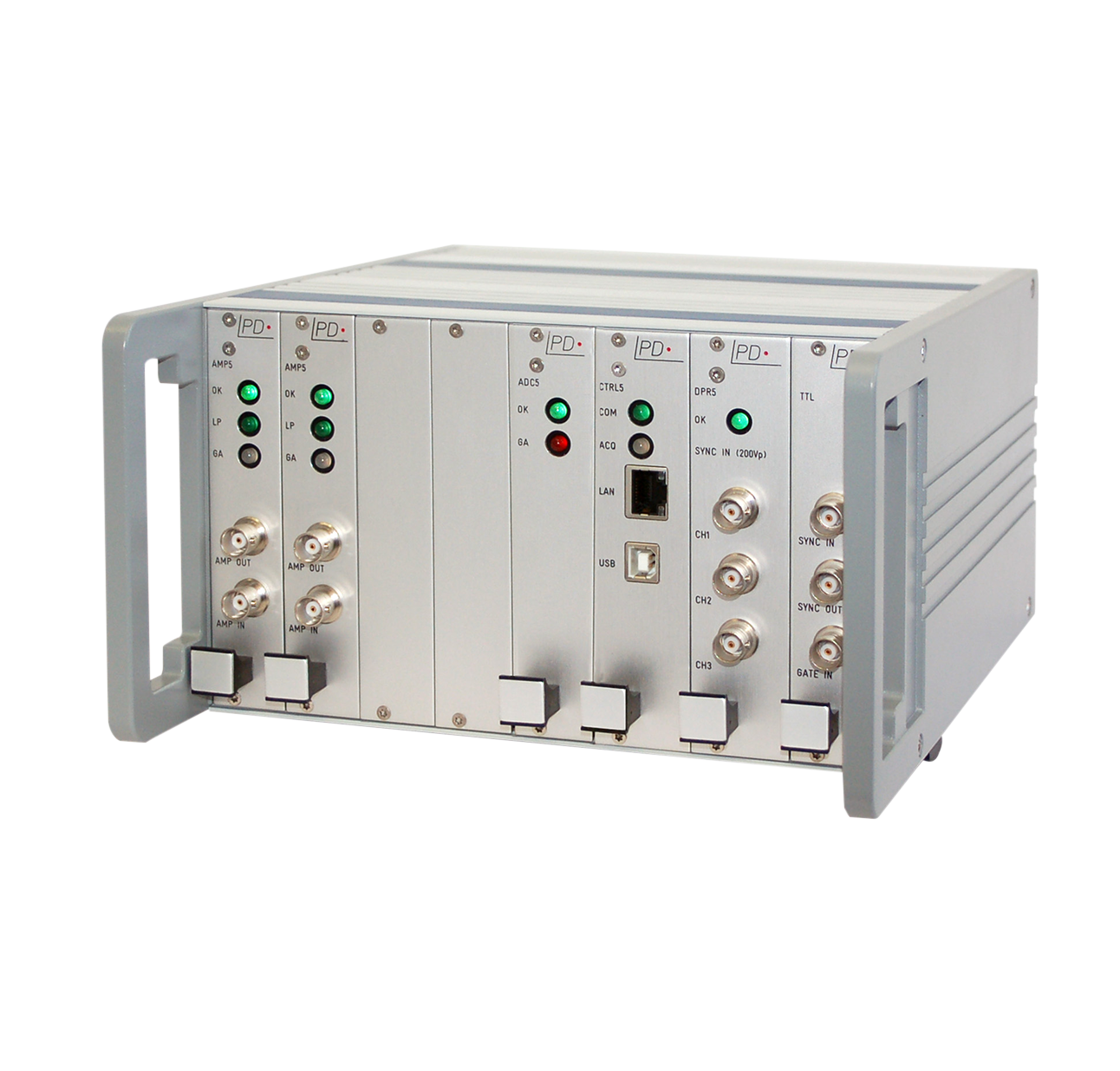

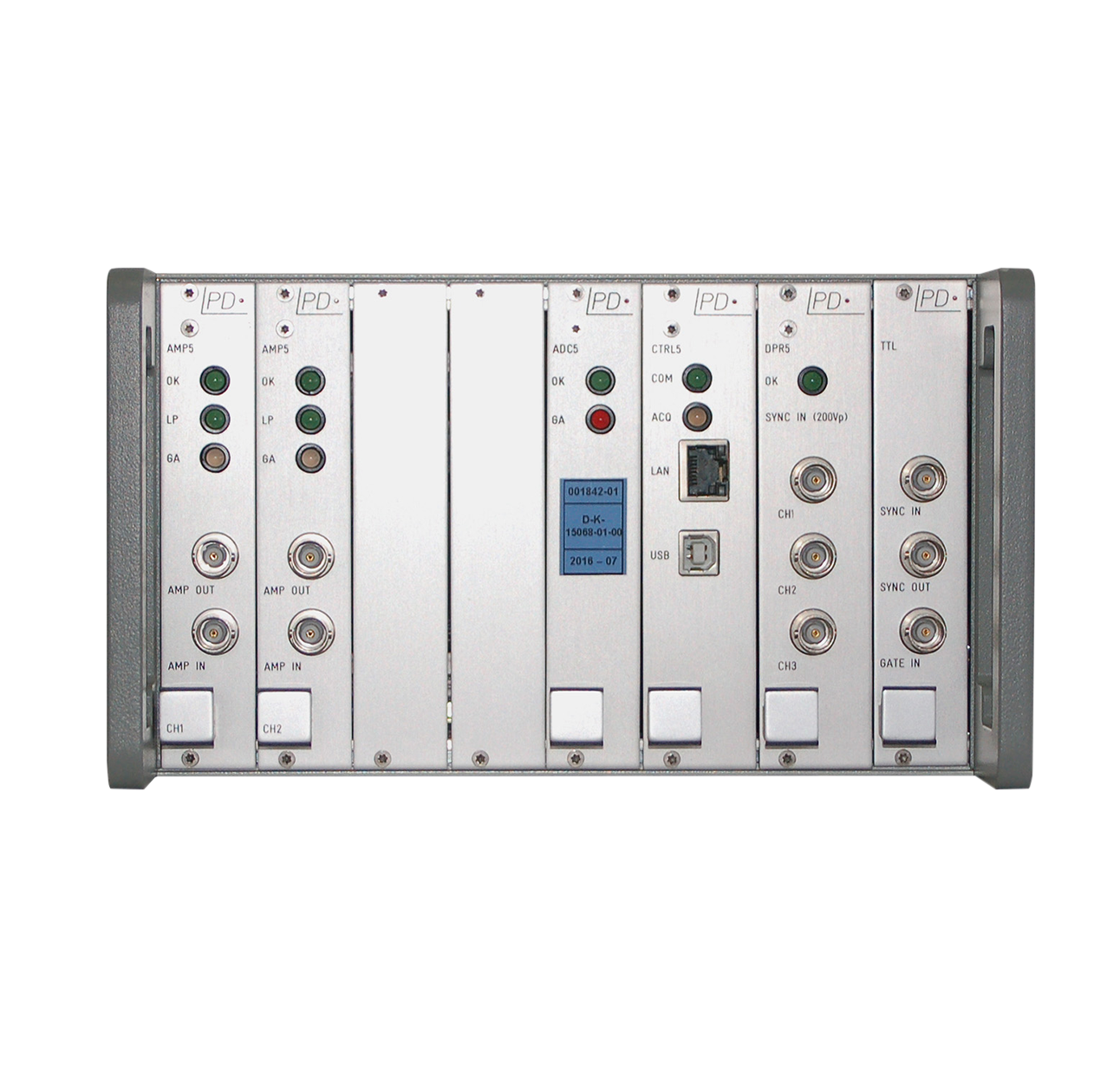

Power Diagnostix’s ICM System is a versatile partial discharge (PD) measurement system. This universal PD device can be used by adjusting versatile features and accessories to fit your specific testing purpose. It has the highest grade of modularity and versatility making it ideal for, laboratory tasks (QAQC) and on-site testing (on-line and off-line) for all your assets.
As a multi-purpose PD measurement instrument, the ICMsystem offers the following features and options:
- PD spectrum analysis
- High voltage measurement (HVM)
- Synchronisation frequency from VLF to 510 Hz
- DC measurement mode
- DAkkS calibrated voltage measurement
- Acoustic fault localisation
- PD fault localisation on cables
- Effective noise gating for blocking phase-stable or phase-independent noises
- Radio influence voltage (RIV) measurement
- High -resolution PD patterns
Assorted coupling devices, including quadrupoles, coupling capacitors, and current transformers, are available to sense the PD signal in the object under test. The instrument provides effective noise gating that blocks phase-stable noise as well as noise independent of the applied voltage cycle, allowing the ICMsystem to be used in noisy environments without losing significant PD data. Appropriate selection of a preamplifier can assist further in achieving a high signal-to-noise ratio.

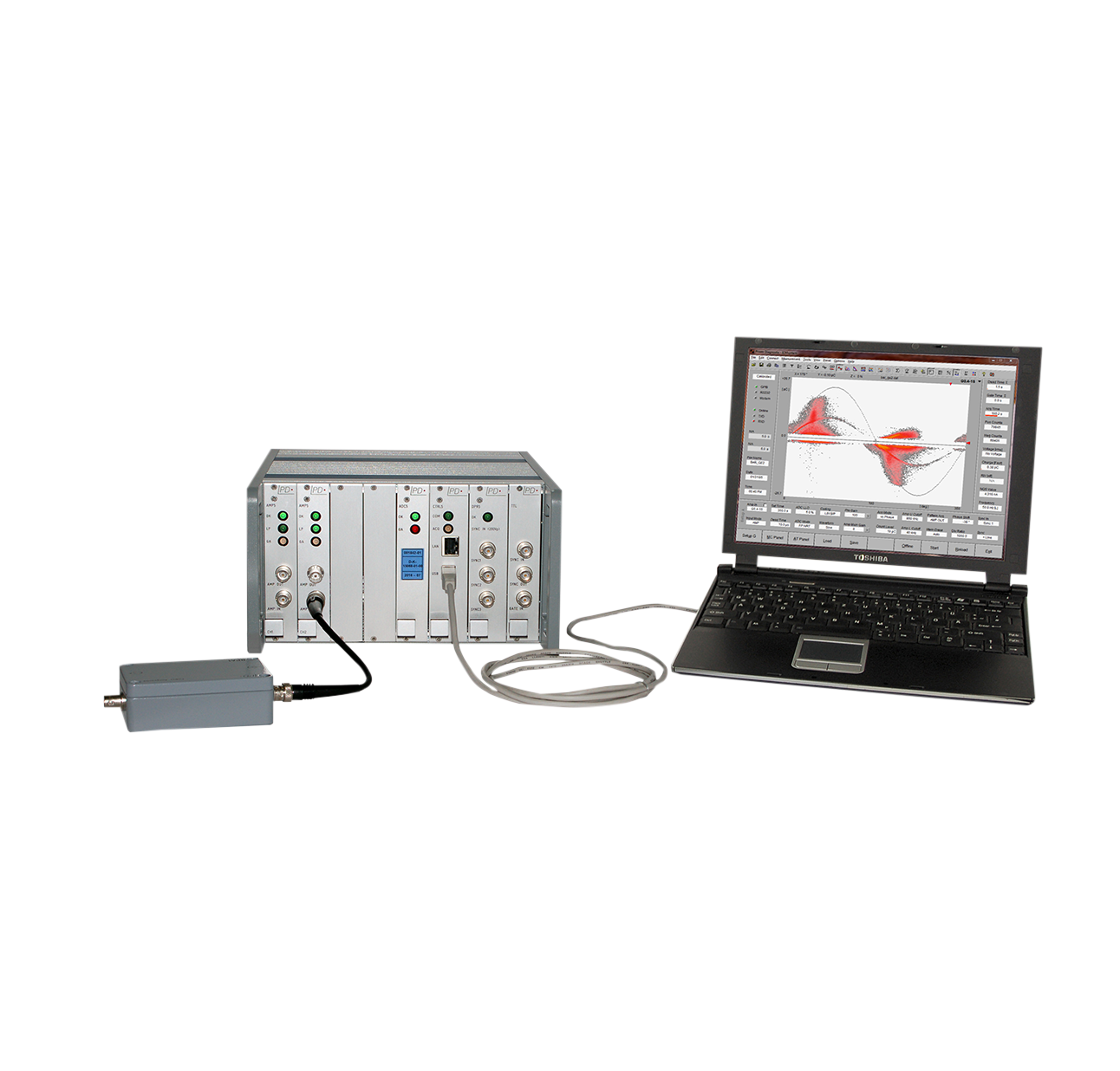

The ICMsystem is fully computer controlled. All controls and displays are accessible on the screen of a PC via a graphical interface;, a so-called ‘virtual instrument’.
