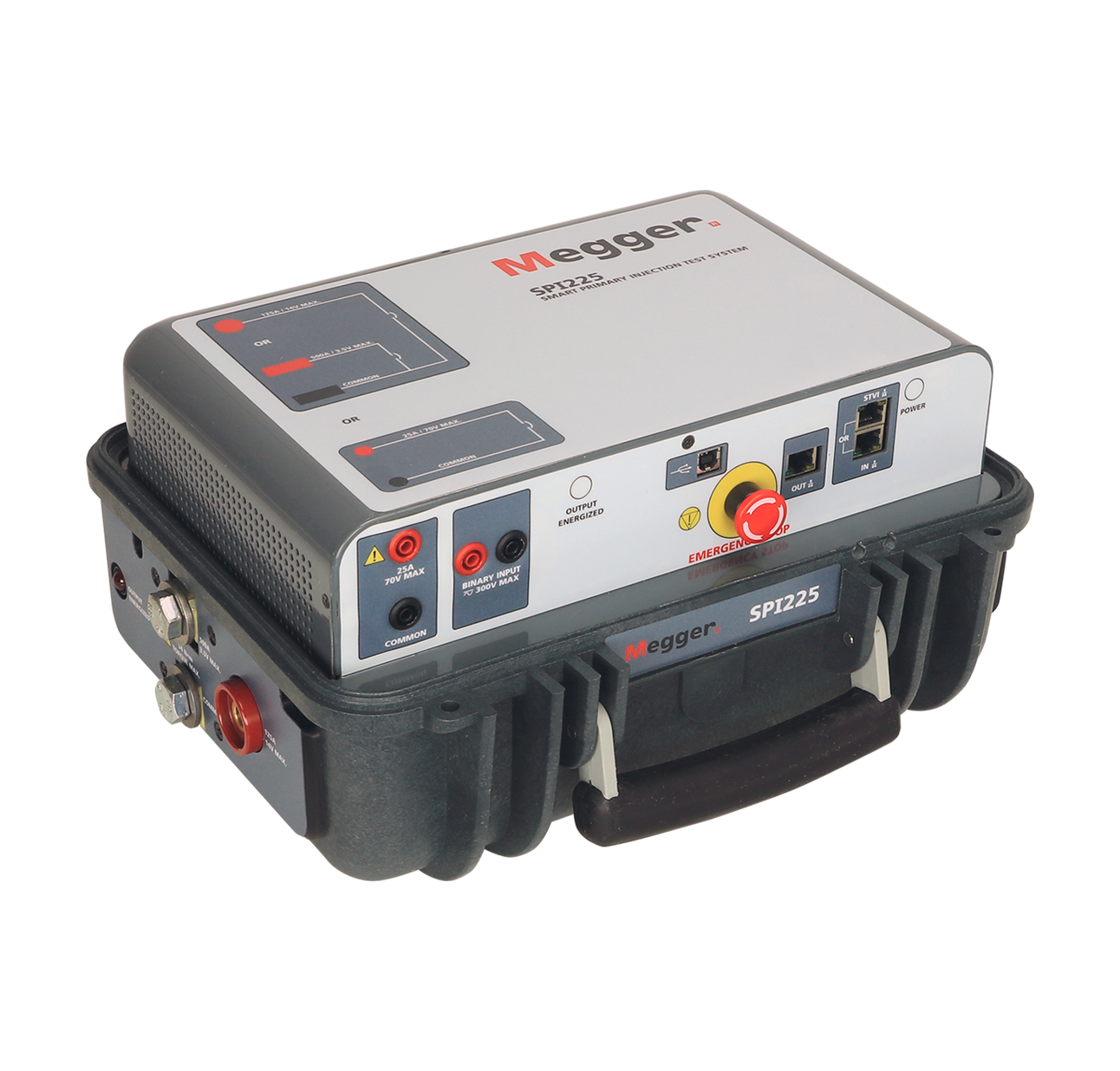

SPI225 Smart primary injection test system

The SPI225 is a high current primary injection test system for all forms of high current testing required in a substation, including testing overcurrent relays, circuit breakers, motor overloads, and current transformers. A single SPI225 is designed to test low voltage molded-case circuit breakers up to a rating of 225 A.

The SPI system allows the user to type in a predetermined current and the SPI system will generate and regulate the requested high current. The SPI system also has the unique ability to turn on at the current zero crossing every time for any load by automatically adjust the output firing angle. This eliminates DC offset for every circuit breaker type and the need for the user to determine and adjust the firing angle for different loads and circuit breakers.

All SPI systems are both fully automated and/or manually controlled. The Smart Touch View Interface (STVI) gives you the ability to manually control the unit and also perform automated testing. The SPI225 can also be controlled by a PC for fully automatic testing and report generation.
