30902 ECBT-NH

Earthing and short-circuit kit for low-voltage distribution boards.
The main reason for their installation is to protect the worker from accidental power-on or return of voltage during repair work.
With insulated pole for extracting blades using M-10 screw.

According to IEC 61230 standard.

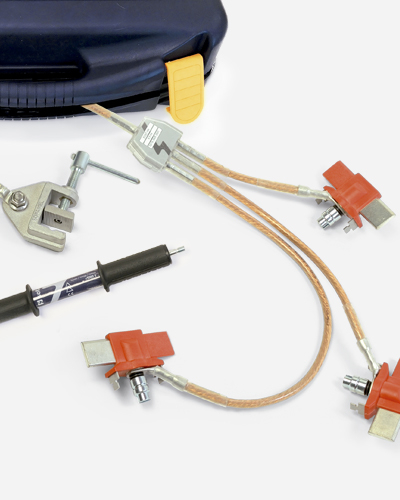

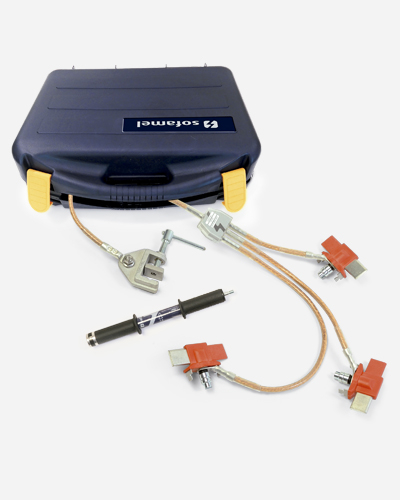

Composed of:

• 3 disconnecting and earthing NH1-3 blades.
• 3 copper PVC-insulated cables 25 mm² section and 0.2 – 0.4 – 0.6 m for short circuit of phases.
• 1 copper PVC-insulated cables 25 mm² section and 0.5 m long for earthing.
• 1 branch-joint connector (4 cables).
• 1 insulated pole for placing blades.
• 1 TT-38A earthing lathe.
• 1 plastic case for storage and transport.
