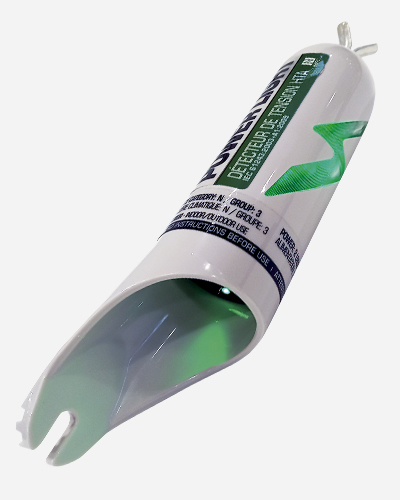

31003 POWER-10/20

VOLTAGE RANGES from 10 to 20 kV

Lamp in the top part with high-brightness, low-consumption LEDs, for use in dark places. Lamp use is independent of the detection system.
Voltage present indicator using multiple high-brightness red LEDs over 360° and buzzer-type intermittent acoustic signal.
Absence of voltage indicator with multiple high-brightness green LEDs over 360º.
Low battery indication by orange LED.
Self-checking system for the full circuit by pressing the test button.
Stops operating when the battery is low.
Working temperature range: -25°C to +55°C.
Auto-start-up with voltage presence.
Auto-power-down to standby after two minutes with absence of voltage. Power consumption is less than 1 µA in this mode.
Indoor and outdoor use by means of insulating pole appropriate to the detector voltage range. Coupling to pole using Universal head.
2xAA high-capacity and high-durability batteries included.

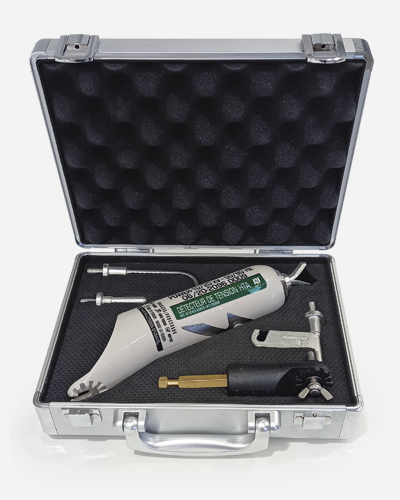

Supplied with metallic box with batteries included.

According with standards IEC 61243:2003+A1:2009 and UNE-EN 61243-1:2006+A1:2011.

Kit items:

• 1 Rated voltaje – 10/20
• 1 Adapter electrode Nevers
• 1 Electrode Powerlight closed
• 1 Electrode Powerlight hook
• 1 Adapter from hexagonal-12 to Universal head

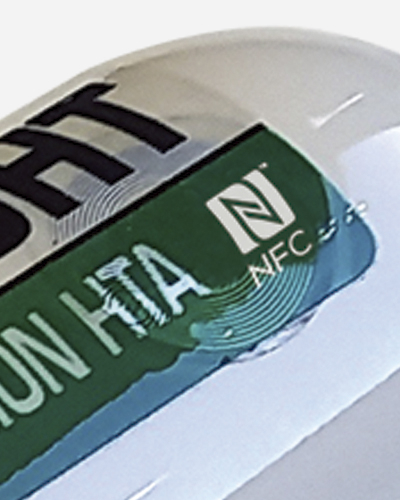

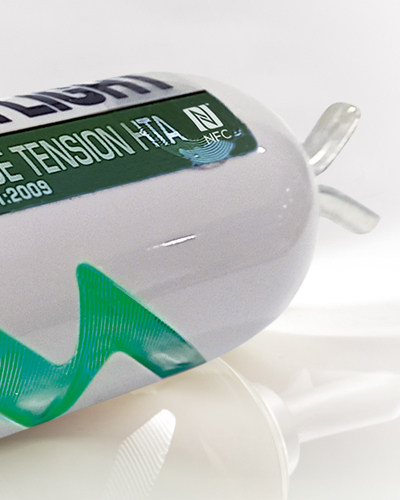

Detector with free or configurable NFC (Near Field Communication).
NFC is a set of communication protocols for communication between two electronic that allows the exchange of data between devices.
